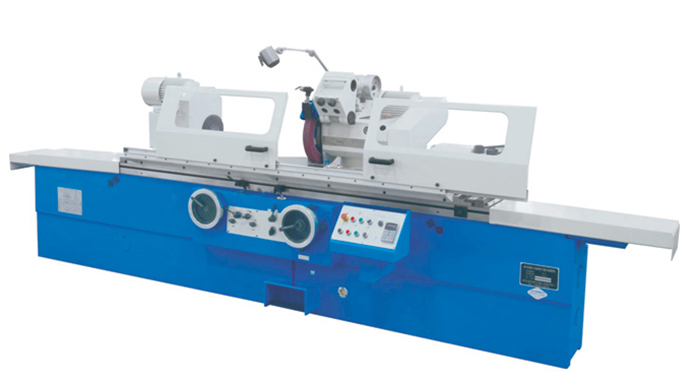

項目��(nèi)��

Item Contents

M1332x1000

M1332x1500

工作臺上最大回轉直徑（mm��

Max.grinding diameter on table

Φ360

Φ360

兩頂尖最大距離（mm��

Max. distance between two centers

1000

1500

卡盤夾持承載重量（Kg��

Max.chuck load

40

40

頂尖間最大承載重量（Kg��

Max.load between two centers

130

外圓磨削范圍（mm��

Max. external grinding diameter and length

(Φ8-Φ320)x1000

(Φ8-Φ320)x1500

頭架頂尖孔（Morse��

Spindle taper of headstock

MT.5

尾架頂尖孔（Morse��

Spindle taper of tailstock

MT.5

外圓砂輪尺寸（外�� x �� x ��(nèi)孔）（mm��

External grinding wheel size

Φ400x40xΦ203

砂輪架進給手輪每轉進給量（mm��

Per rev. feeding value of grinding wheel

�� 2

�� 0.5

砂輪架進給手輪每格進給量（mm��

Per grad. feeding value of grinding wheel

�� 0.01

�� 0.0025

砂輪主軸電機（KW��

Motor of grinding wheel spindle

5.5

主軸轉速（r/min��

Spindle speed

1440

頭架主軸電機（KW��

Motor of headstock grinding spindle

0.75

頭架轉速（r/min��

Motor speed of headstock grinding spindle

0-320

砂輪架回轉角（°）

Turning angle of grinding wheel

30

工作臺回轉角（°）

Turning angle of worktable

-3��+9��+7��+6

總電源功率（KW��

Total drive capacity

9

圓度（mm��

Roundness

外圓 0.003

柱度（mm��

Cylindricity

外圓 0.0055

表面粗糙度（um��

Surface roughness

外圓 Ra �� 0.16

機床凈重（Kg��

Net weight/Gross weight

3300

3800

機床尺寸（長 x �� x 高）（mm��

Packing dimension

3200x1800x1420

4200X1800X1420
